Applications
Strange Live Axles Equipped With Steel Brakes
All 10 1/2″ & Post 2012 9″/9 1/2″
Same Rotor Fits LH & RH Sides
Note
Can also be used to convert from carbon brakes
Other parts would be required – Call for details
Features

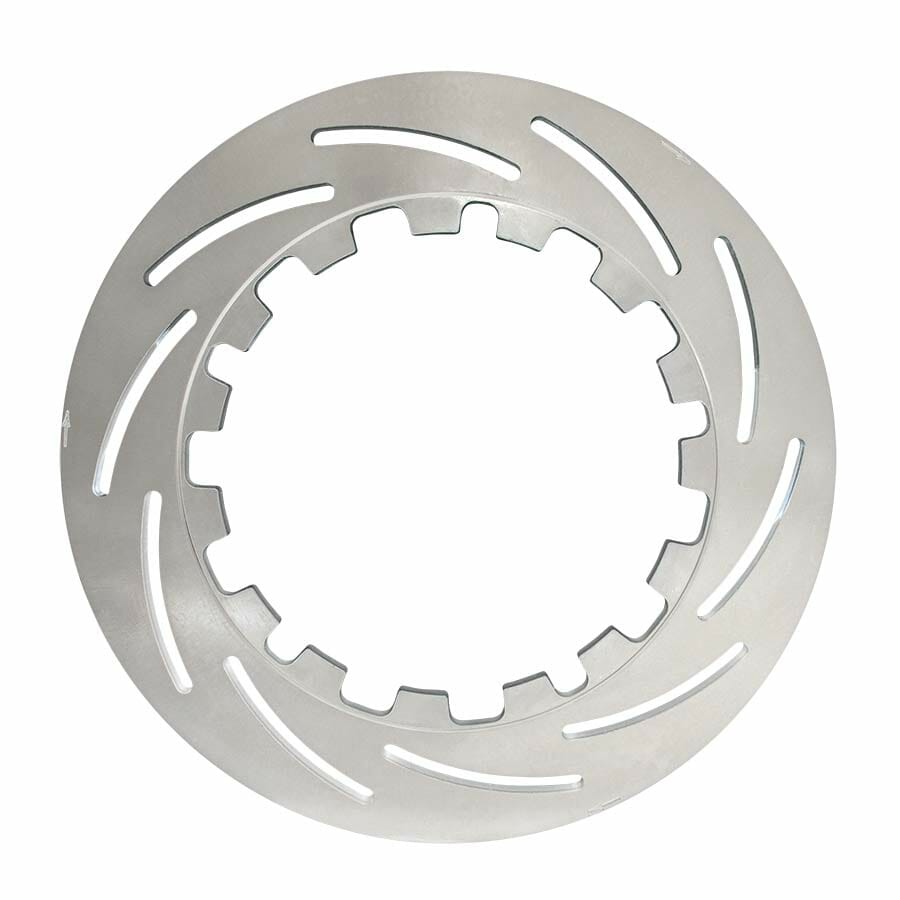

• Cogs on rotor and hub engage and secured by retaining ring
• Design allows for expansion variances between aluminum & steel
• Clearance provided for axial and radial growth as temperatures increase
• Slots reduce rotating weight, control expansion, and increase air flow
• Rotor warping and coning tendencies are drastically reduced
Dimensions
11.500″ OD
.445″ thick
Wt= 6.95 Lb
Note
Discard at .400″
Related Components
Rear brake pad……………………….. B5020
Pre 2012 9/9.5″ rotors……… L4001K / L4001L
Drop-out Live Axle rotors… L6000U / L6000V
