Single Adjustable Front Shock
1965-1979 F100 Pick-Up


Part Number: S5255

1965-1979 Ford F100 Pick-Up

Single Adjustable Aluminum Shock
Front – Sold as each

Soft Settings
For Drag Racing
Allows weight transfer to increase traction

Medium Settings
For Performance Street
Enhances handling & cornering characteristics

Stiff Settings
For Road Racing
Provides very aggressive control over body roll

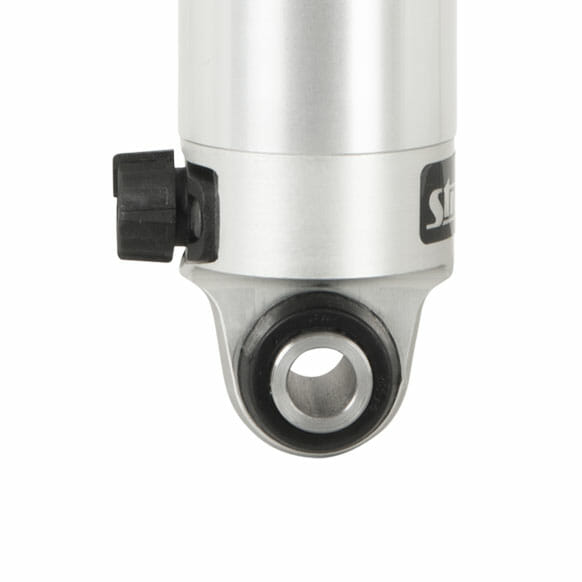

Rotating Knob Clockwise Stiffens Valving

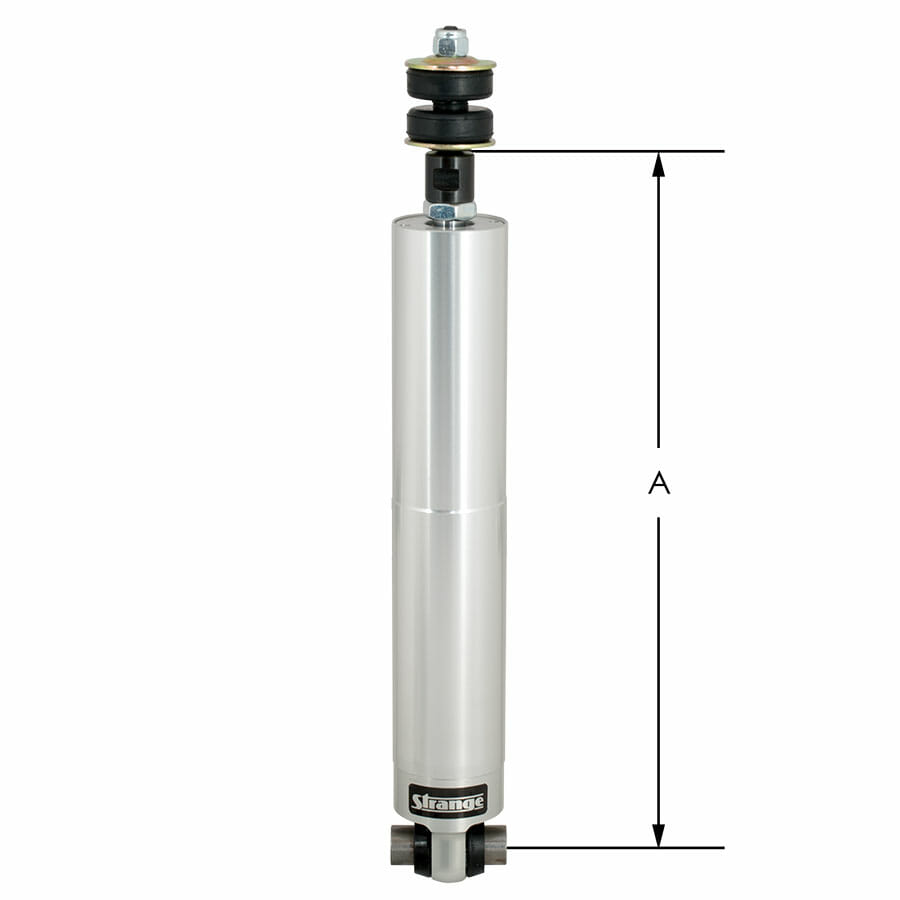

Dimension A
Extended 16.00″ / Compressed 10.50″

• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved

– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower polyurethane bushing
– Steel inner sleeve

Related Components
Rear Shock
1970-1979 ….. S5256
1965-1969….. S5258
