Application
Strange 2000 & Older Floater Kits
Equipped with 35 spline drive plates
Description

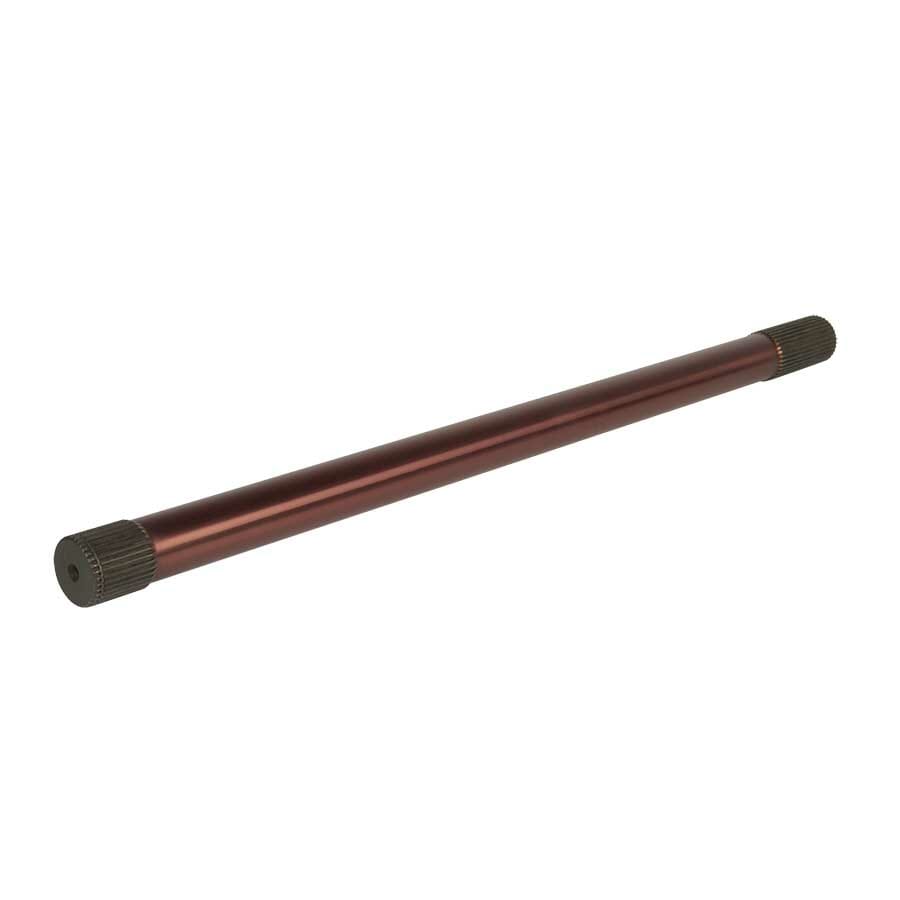

Drag Race floater axle – 24″ or less
Machined from solid Hy-Tuf material
Hy-Tuf
A low carbon, high manganese, high nickel, and high molybdenum steel
This is a premium material that is suitable for most applications
Floater Axles Are Sold As Each
Features
• Machine from Pro Race Hy-Tuf material
• Involuted splines are hobbed before heat treat
• Thru hardened to provide maximum torsional strength
• Drive plate end is 35 spline with 30° pressure angle
• Spirolox® prevents axle from shifting
• Inner end made to suit customer's spool
Other 35 Spline Floater Axles
24 1/8″ to 28″……… A1040H28
28 1/8″ to 32″……… A1040H32
32 1/8″ to 36″……… A1040H36
Current 40 Spline Floater Kits
Carbon
4 3/4″ bolt circle….. F22064WC
5″ bolt circle………… F22065WC
5 1/2″ bolt circle……. F2206WC
Steel
4 3/4″ bolt circle…….. F22064
5″ bolt circle…………… F22065
5 1/2″ bolt circle……… F2206
