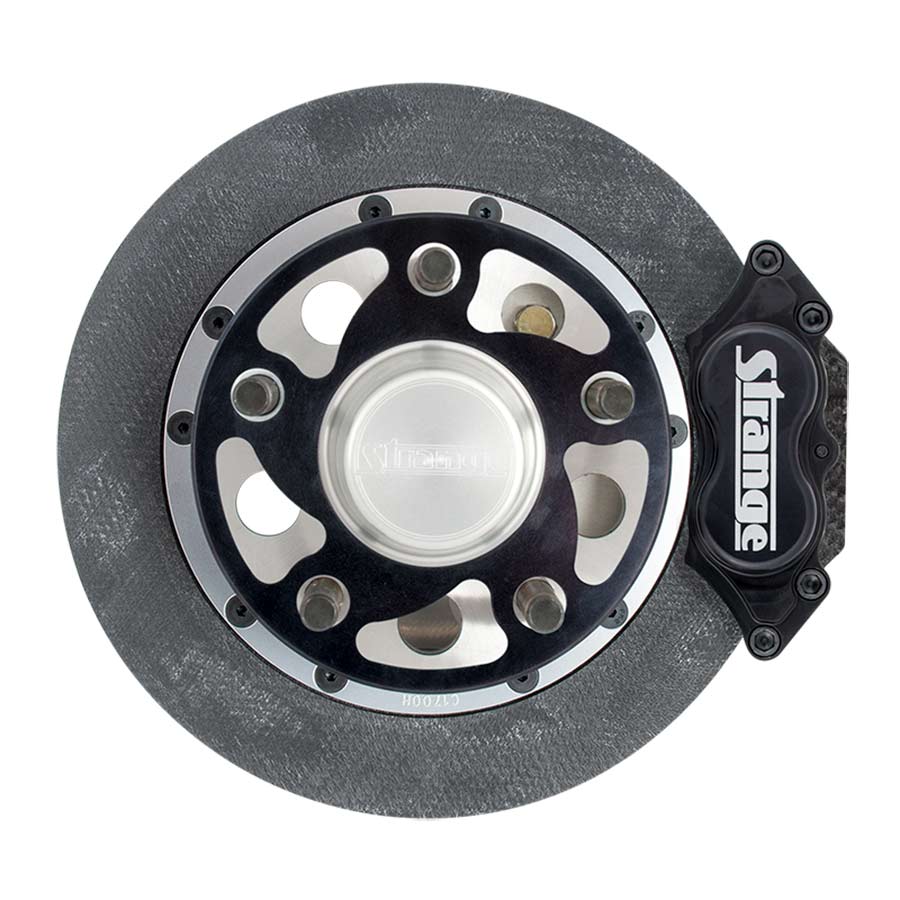

Strange Front Carbon Brake Kit - 4 3/4" B.C.
For 1987 to Present Aluminum Struts


Part Number: C4154WC

Designed Specifically For Drag Racing

1987-present Strange Aluminum Struts

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

Kit Includes

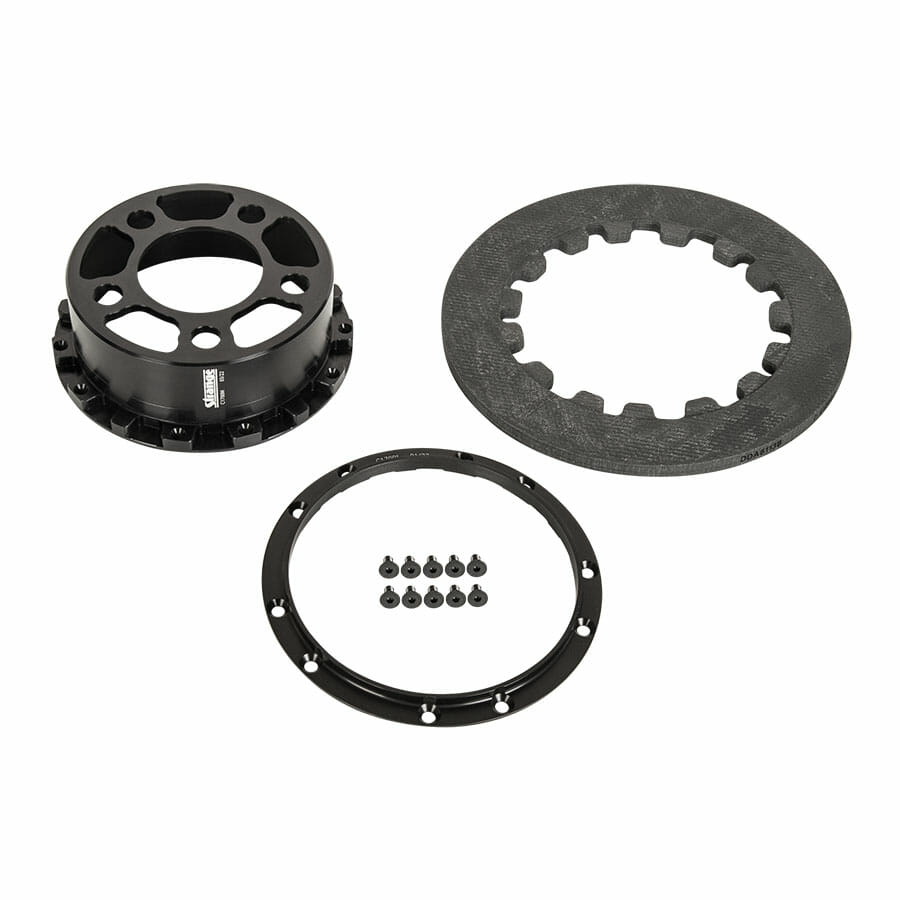

11″ carbon rotors – C1790
Ultra Lite billet aluminum rotor hats *
Aluminum retaining rings with FHSCS screws

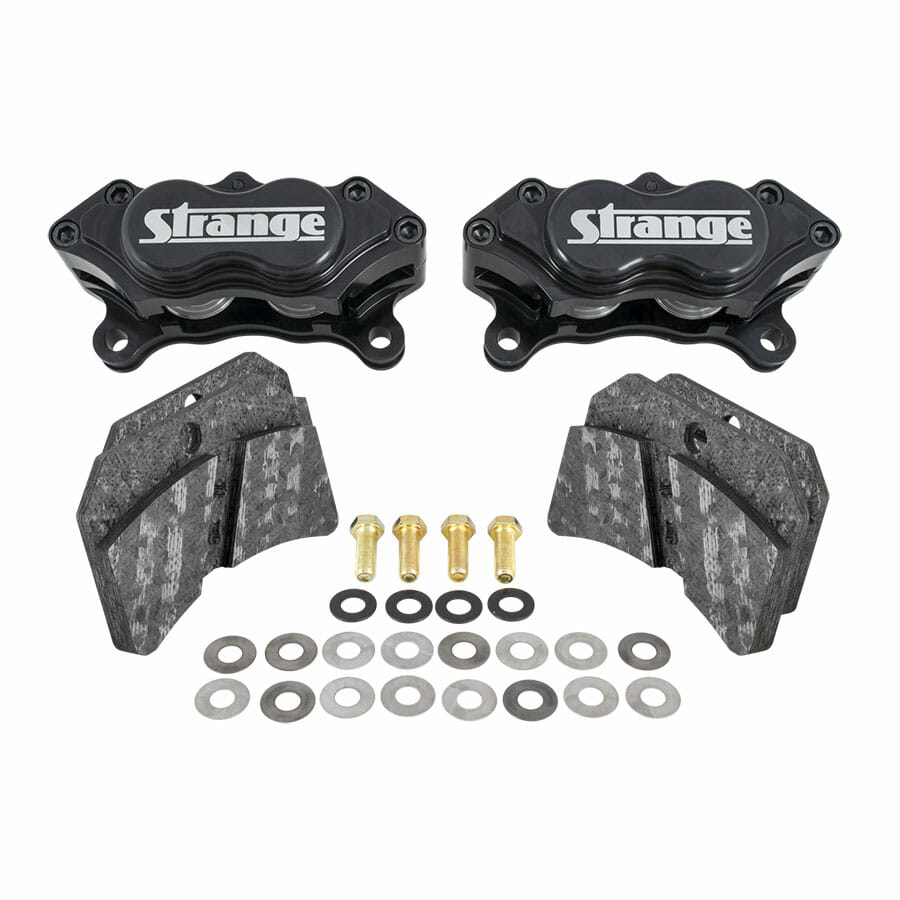

Billet aluminum 4 piston carbon brake calipers – B5042
Carbon brake pads – L4050H1 / L4050H2
One piece aluminum caliper mounts
4 3/4″ B.C. billet aluminum hubs with lightening holes
Aluminum hub caps with O-rings
Bearings, races and seals
1/2″ -20 screw-in wheel studs – A1028

* Ultra Lite milling has been redesigned to remove additional weight

All Necessary Mounting Hardware

Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Front carbon brake kit /87-pres Strange forged alum strut /4.75″ bc
