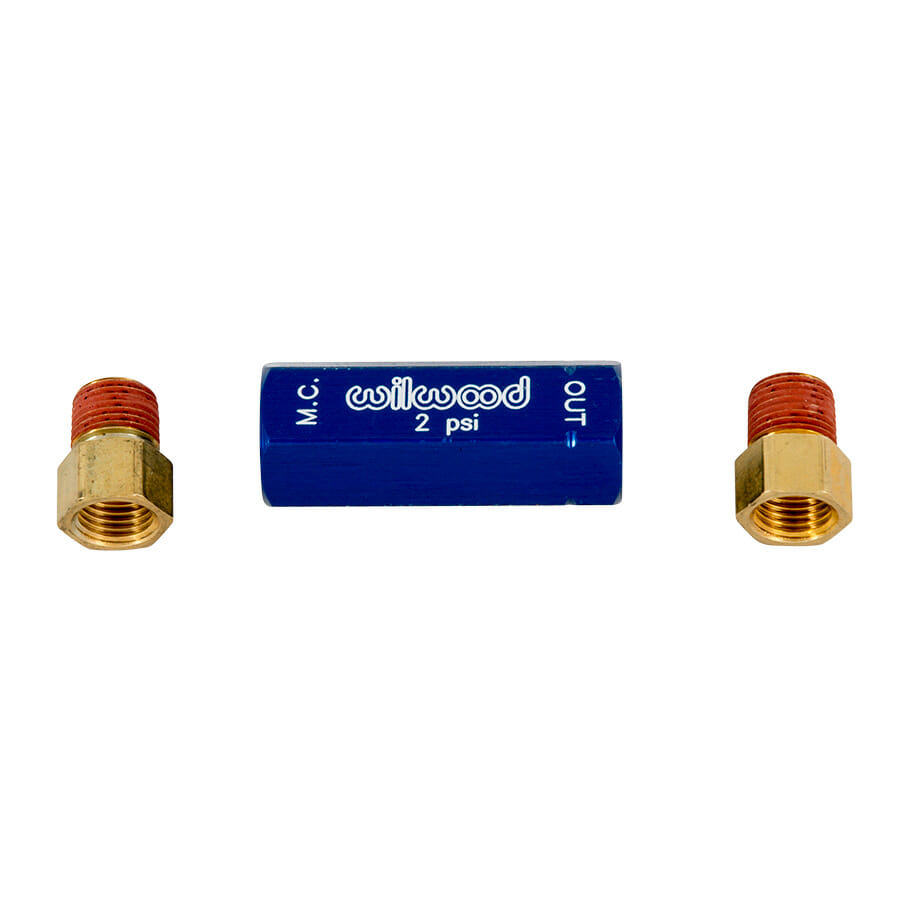

Residual Pressure Valve - 2 Lbs

$23.00

Part Number: B3366


Application
Disc Brake Racing Systems
When master cylinder is mounted below caliper level
Long pedal travel will be experienced without use of this valve

Description
Retains 2 lbs of Line Pressure
Offsets the effects of gravity returning all fluid to master cylinder
Keeps caliper pistons from completely retracting into their bores

Use in Brake Line Supplying Disc Brakes
Should be mounted as close to the master cylinder as possible

Aluminum Body
• Blue anodized for identification & corrosion resistance
• 1/8″ NPT inlet and outlet ports
• Includes 3/16″ inverted flare x 1/8″ NPT adapters

Disc Brake Master with Drum Brakes Require a 10 lbs Valve
Keeps wheel cylinder cups expanded and ready to move

Related Components
10 lb residual pressure valve……. B3367
Pressure test gauge………………….. P2360
Adjustable proportioning valve… B3369


Description

External residual pressure valve / 2 lbs
