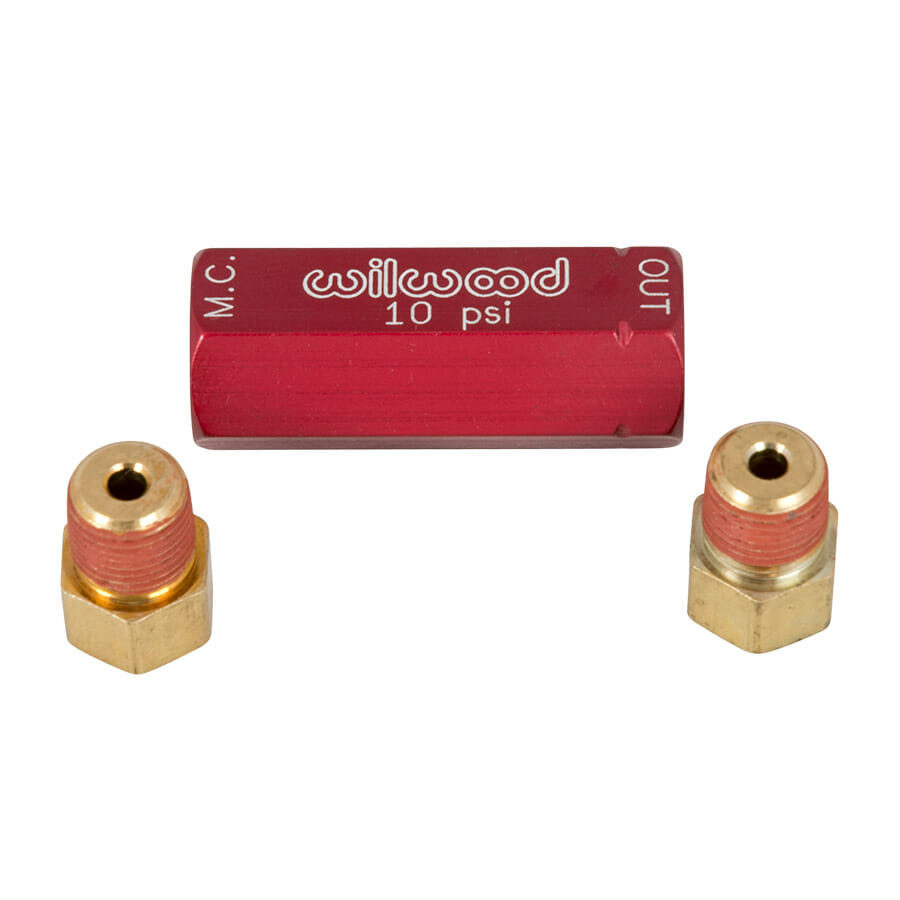

External Residual Pressure Valve – 10 Lb

$22.00

Part Number: B3367

Application
Racing brake systems
Using disc brake master cylinder with drum brakes
Long pedal travel will be experienced without use of this valve

Description
Hold 10 lb of line pressure at all times
Keeps wheel cylinder cups expanded and ready to move

For use in brake line supplying drum brakes
Should be mounted as close to the master cylinder as possible
Do not use in disc supply lines as brake drag will occur *

* Master cylinder mounted below caliper level requires a 2 lb valve

Includes
Aluminum body red anodized for identification & corrosion resistance
1/8″ NPT inlet and outlet ports
3/16″ inverted flare x 1/8″ NPT adapters



Related Components
2 lb residual pressure valve……… B3366
Pressure test gauge………………….. P2360
Adjustable proportioning valve… B3369

Description

External residual pressure valve / 10 lbs

Additional information

Weight 0.10 lbs
