Double Adjustable Rear Shock
GM Truck


Part Number: S5098


Chevy Truck – Rear
1969-1972 Full Size Blazer (2 Wheel Drive)
1967-1972 C10 Pick-up (2 Wheel Drive)

GMC Truck – Rear
1967-1972 Sierra (2WD Coil Spring Rear)
1969-1972 Full Size Jimmy (2 Wheel Drive)



Double Adjustable Aluminum Shock
Rear – Sold as each

Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height

Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics

Rotating Knobs Clockwise Stiffens Valving

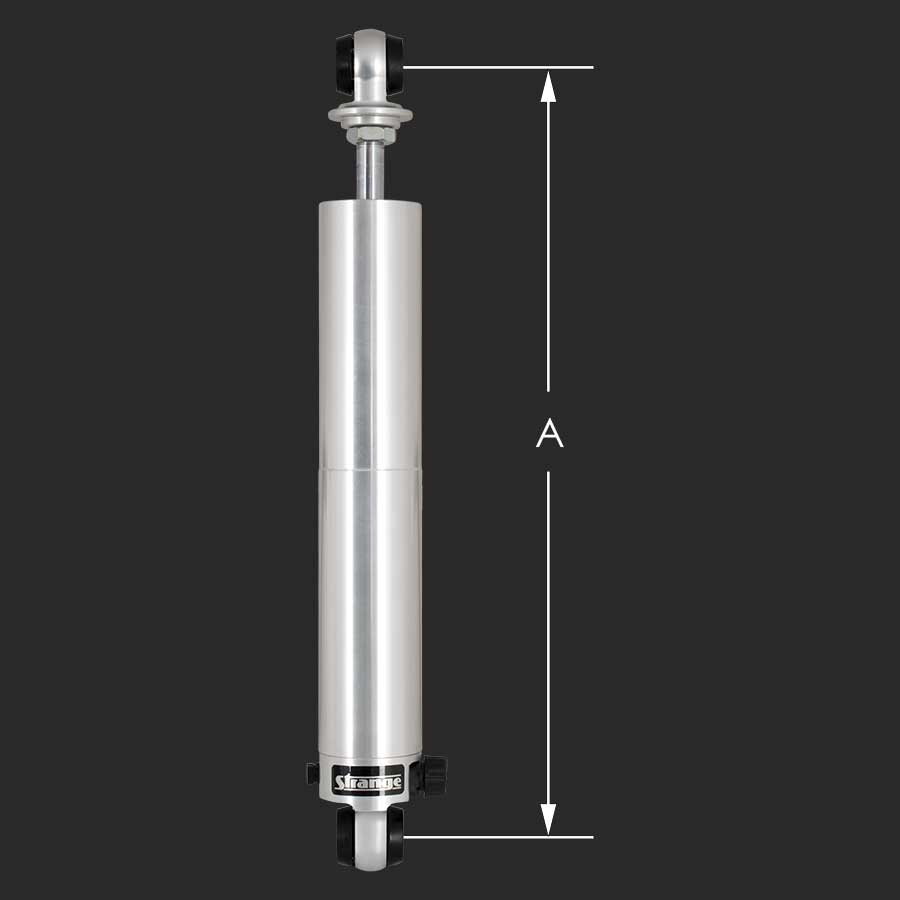

Dimension A

Extended 17.15″ / Compressed 11.64″


• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved


– Upper & Lower polyurethane bushings
– 3/4″ 5/8″ ID x 1.200″ steel sleeves

Front Shock

Double adjustable………………….. S5095



GM Double Adjustable Rear Shock

Additional information

Weight 4.5 lbs
