Double Adjustable Rear Shock
1970-1979 F100 Pick-Up


Part Number: S5056


1970-1979 Ford F100 Pick-Up


Double Adjustable Aluminum Shock
Rear – Sold as each

Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height

Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics

Rotating Knob Clockwise Stiffens Valving

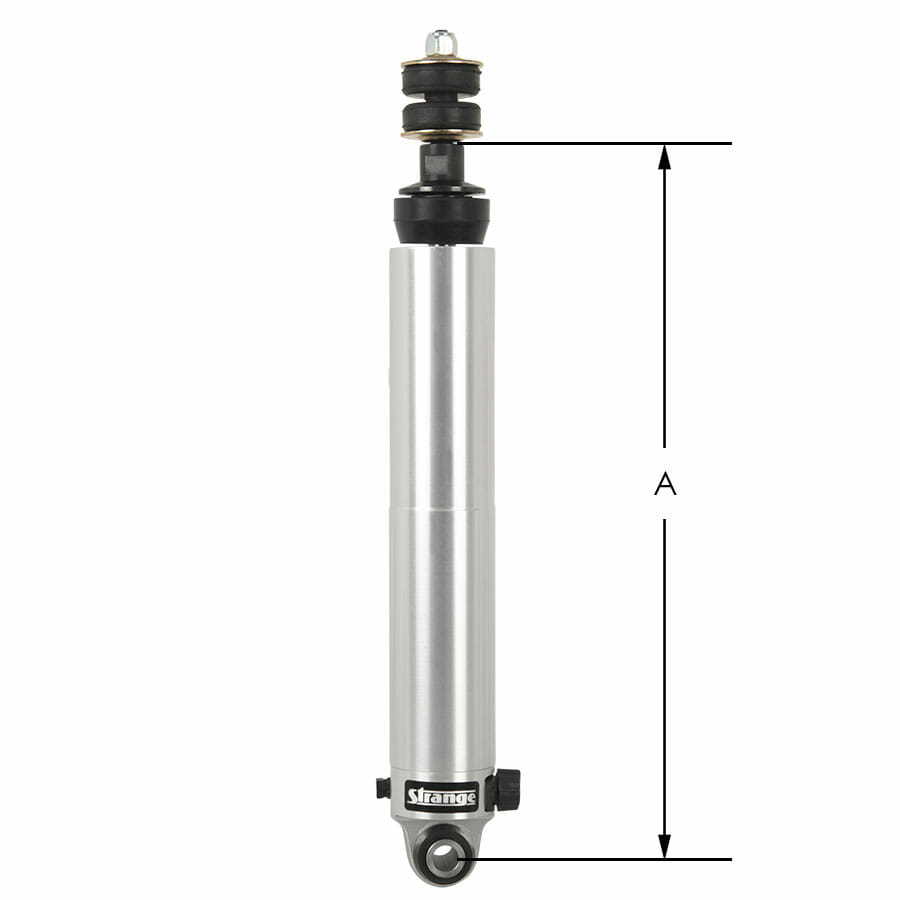

Dimension A

Extended 20.10″ / Compressed 12.90″


• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved


– Upper stud with rubber cushions
– Concave washers & lock nut
– Bump rubber
– Lower polyurethane bushing
– Steel inner sleeve


Front Shock….. S5055



Ford double adjustable rear shock for 1970-1979 F100

Additional information

Weight 4.85 lbs
