Application
1997-2013
C5 / C6 Corvette
Description

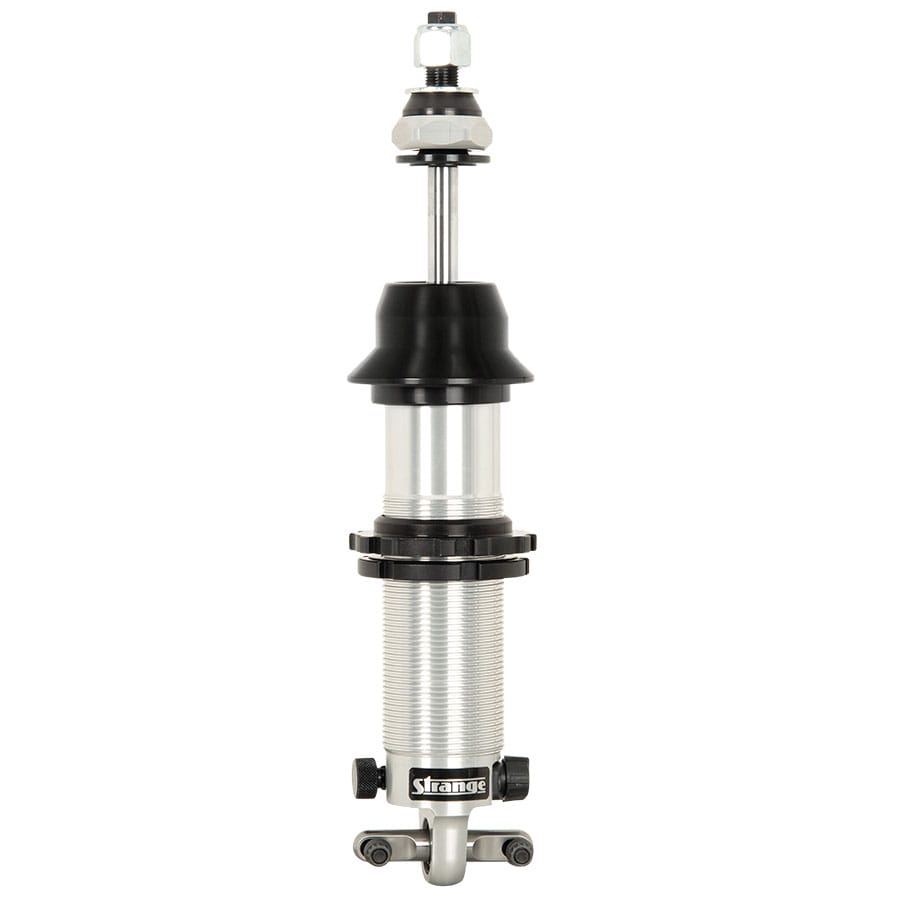

Front Double Adjustable Coil-Over Shock
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Drag Racing
Softening extension allows for more weight transfer
Stiffening compression further aides in weight transfer
Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Rotating Knobs Clockwise Stiffens Valving

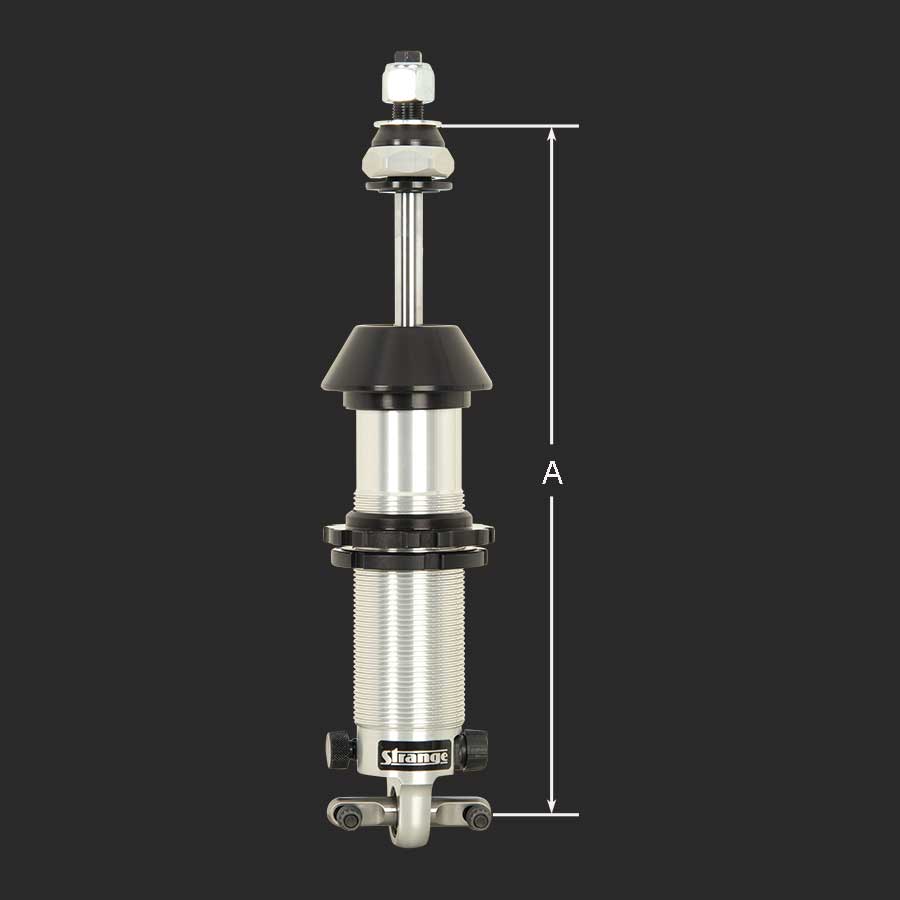

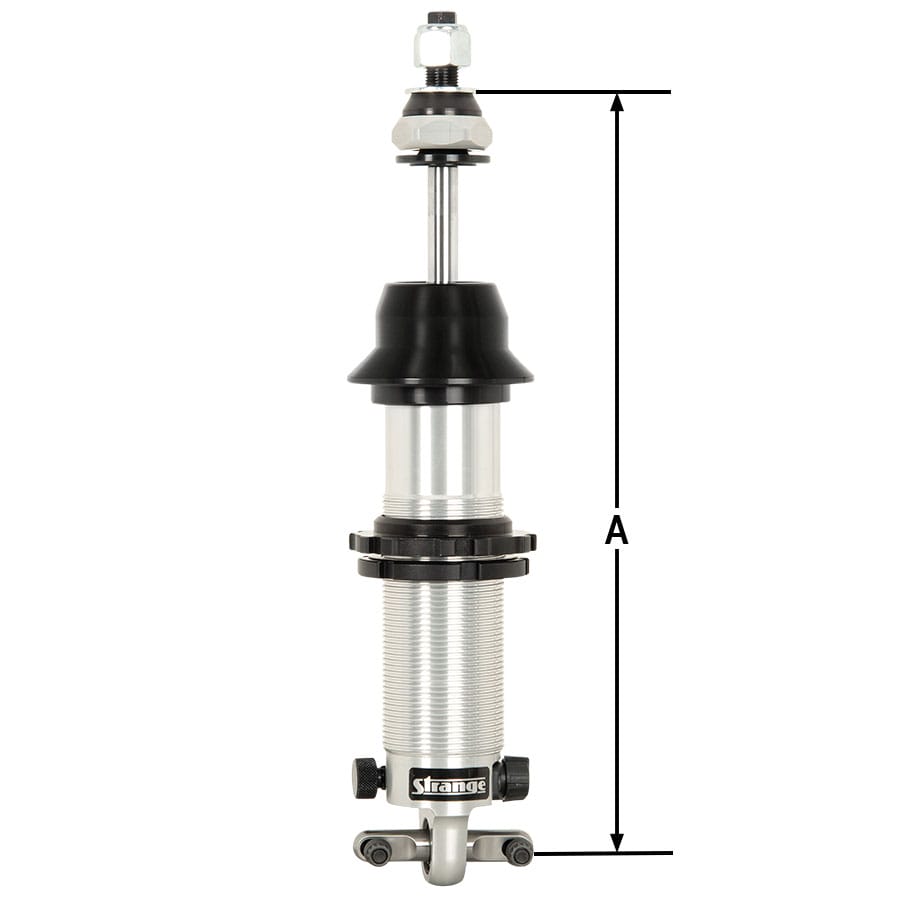

Dimension A
17.32″ Extended / 12.38″ Compressed
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Upper & Lower Spherical Bearings
• Top stud and bottom T-bar allowed to pivot during shock travel
• Eliminates binding common with rubber bushings
• Ensures smooth and consistent operation
Includes
– Upper & lower spring seats
– Lower seat jam nut
– Upper stud with integral spherical bearing
– Lower spherical ball bearing
– Mounting hardware
Spring – Sold Separately
Recommendation
10″ x 2.5″ ID spring
Consult your chassis builder for spring rate suggestion
Spring seat bearing kit…….. S1409
Adjuster wrench……………. S1413
