Rear Caliper Mount - LH Side For Strange 12 Bolt F-Body Rear End Using 1993-1997 F-Body Factory Disc Brakes

$80.00

Part Number: B1105A

Application
Strange 12 Bolt F-Body Bolt-in Rear End *
Using 1993-1997 F-Body factory disc brakes

* Will not clear mounts on 1982-1992 rear ends

Note
Can be used on other rear ends
Must meet the same requirements

Description

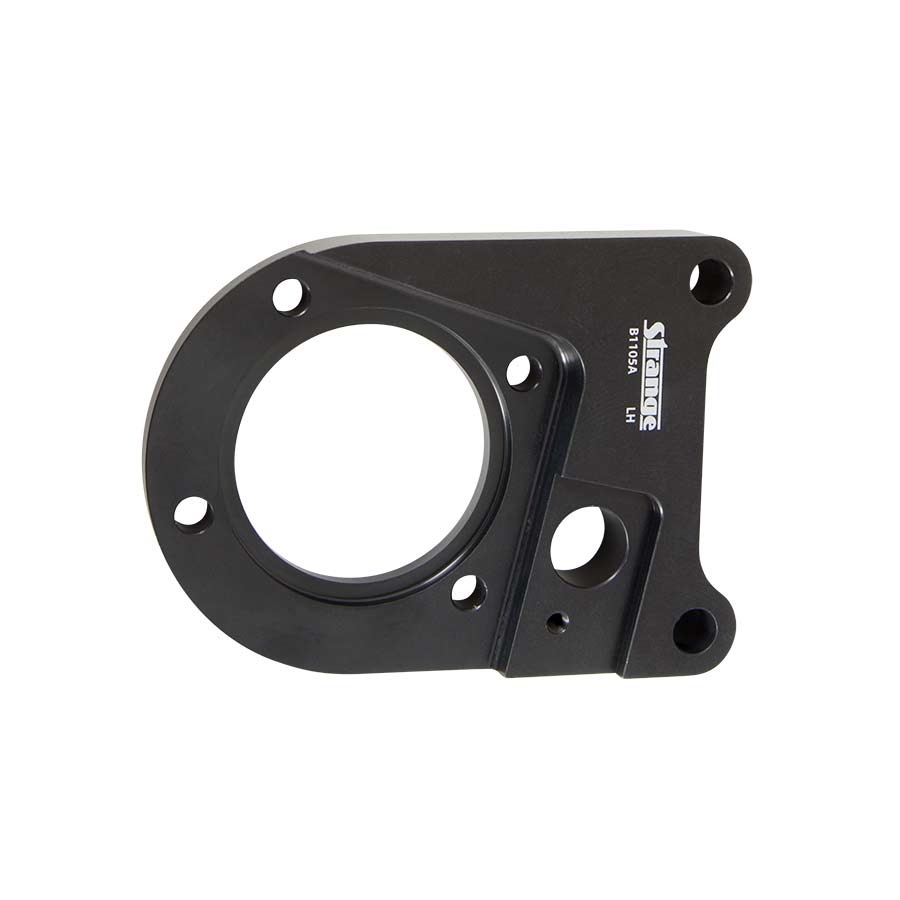

Billet aluminum caliper mount – LH side
Adapts OEM brakes to 3.150″ housing end

Requirements
GM 1993-1997 F-Body disc brakes
Custom axles built for this purpose
Timken® tapered axle bearings
Strange Small GM 3.150″ housing ends

Related Components
Housing ends………………………. H1143
Tapered axle bearing…………… A1013
RH caliper mount……………….. B1105B

Alloy Axle Package
Axles, bearings, & studs… P3302 / P3502
Including spool……………. P3302S / P3502S

Description

93-97 F-Body Caliper Mount – LH Side
