Application
1967 Camaro / Firebird / Trans Am
With Non-Staggered Shocks
Description

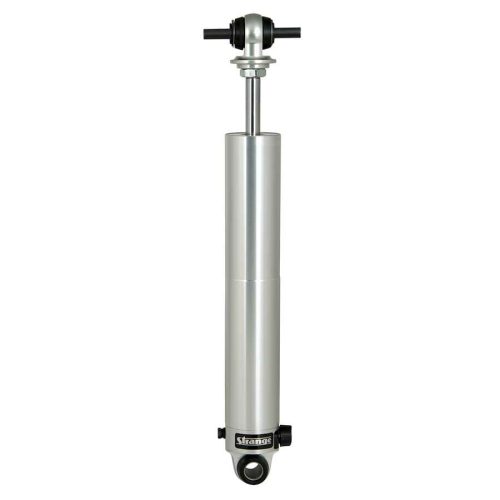

Single Adjustable Aluminum Shock
Rear – Sold as each
Soft Settings
For Drag Racing
Allows more downward force applied to the rear tires
Medium Settings
For Performance Street
Enhances handling & cornering characteristics
Stiff Settings
For Road Racing
Provides very aggressive control over body roll
Rotating Knob Clockwise Stiffens Valving
Dimension A
Extended 22.24″ / Compressed 14.2″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & lower polyurethane bushings
– Upper heavy duty t-bar
– Lower steel sleeve
Related Components
Double adjustable…………….. S5076
With Staggered Shocks
Single adjustable…………….. S5270
Double adjustable…………….. S5070
Front Shock
Single adjustable…………….. S5263
Double adjustable…………….. S5063
