Double Adjustable Coil-Over Strut                                                                 2010-2014 Camaro – Drag Race Only

/, GM Bolt-in Shocks / Struts, GM, GM, Shocks / Struts / Springs, Bolt-In Shocks / Struts/

Double Adjustable Coil-Over Strut                                                                 2010-2014 Camaro – Drag Race Only

Double Adjustable Coil-Over Strut                                                                 2010-2014 Camaro – Drag Race Only

$499.00

Part Number: S2063

Application

2010-2014 Camaro


Description

Double Adjustable Steel Strut
Drag Race Only – Sold as each

Reuses factory upper mount


Requirement

16″ x 2.5″ ID Spring


Adjustments

Extension Settings
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times

Compression Settings
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands


Features

• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved


Spring – Sold Separately

Recommendation
16″ x 2.5″ ID spring
100-125 lbs rate

Some builders may prefer a different spring rate
Consult your chassis builder for their suggestion


Related Components

Springs
100 lbs…………………………………… SP16100
125 lbs…………………………………… SP16125

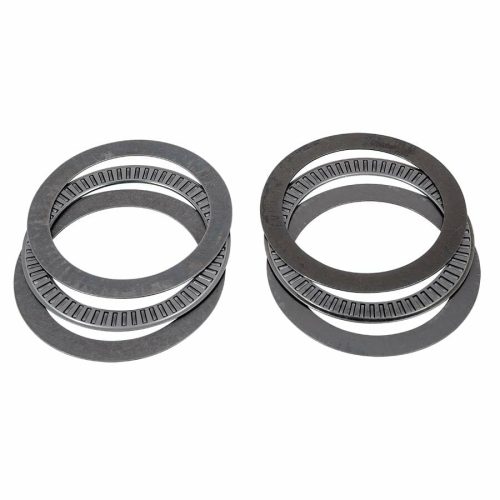

Spring seat bearing kit…………….. S1409
Spring seat adjuster wrench……. S1413



Description

Double adjustable coil-over strut for 2010-2014 Camaro – Drag Race Only

Additional information

Weight 13.00 lbs
