1/2″ Ring Gear Bolt                                                                                             For L6000 Drop-Out Live Axle

//

1/2″ Ring Gear Bolt                                                                                             For L6000 Drop-Out Live Axle

1/2″ Ring Gear Bolt                                                                                             For L6000 Drop-Out Live Axle

$2.00

Part Number: L6000R

Application

Strange Drop-Out Live Axle – L6000


Description

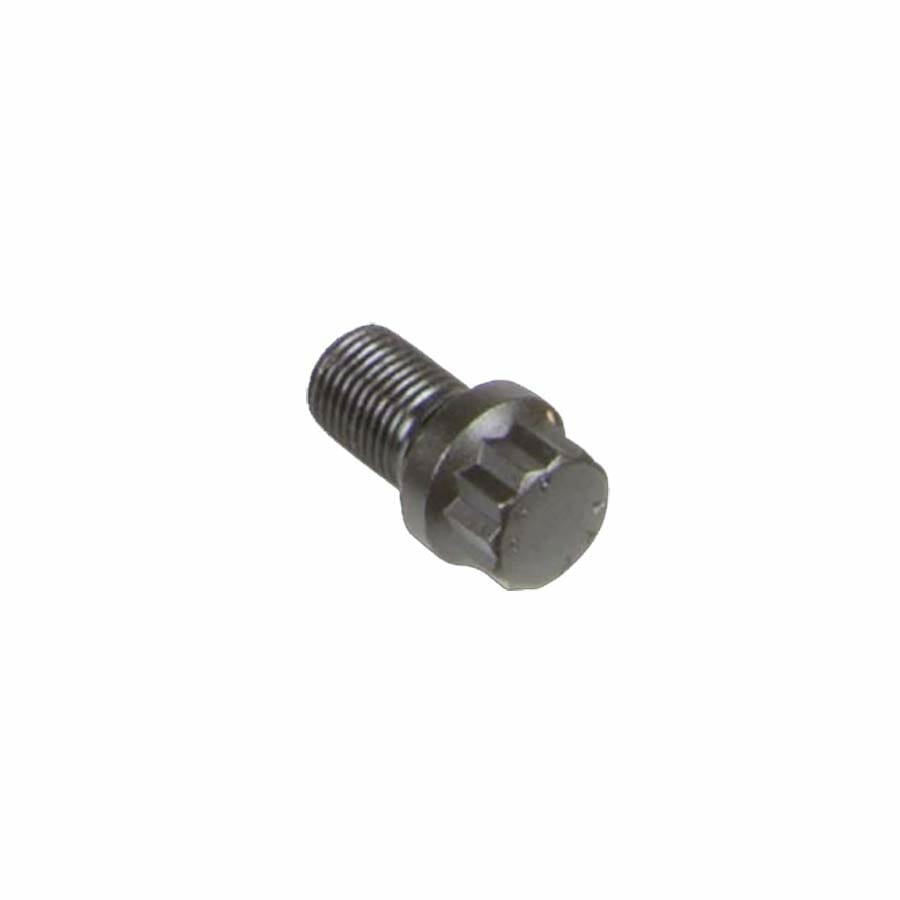

1/2″ Ring Gear Bolt
Sold as each


Dimensions

1/2″-20
Twelve point
1/2″ wrench size
.740″ OD flange x .210″ thick
.875″ long measured under flange


Recommendations

Use Red Loctite®
Torque to 85 ft lbs



Description

1/2″-20 Ring Gear Bolt For L6000 Drop-Out Live Axle

Additional information

Weight .1 lbs
