Strange Pro Race Hy-Tuf Axles – Pair                                                                   40 Spline Solid Axle with Lightening Holes

/, Drag Race, Individual Axles, Ford, Ford, Axle Only, Mopar, Mopar, Axle Only/

Strange Pro Race Hy-Tuf Axles – Pair                                                                   40 Spline Solid Axle with Lightening Holes

Strange Pro Race Hy-Tuf Axles – Pair                                                                   40 Spline Solid Axle with Lightening Holes

$469.00

Part Number: A2100

Out of stock

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

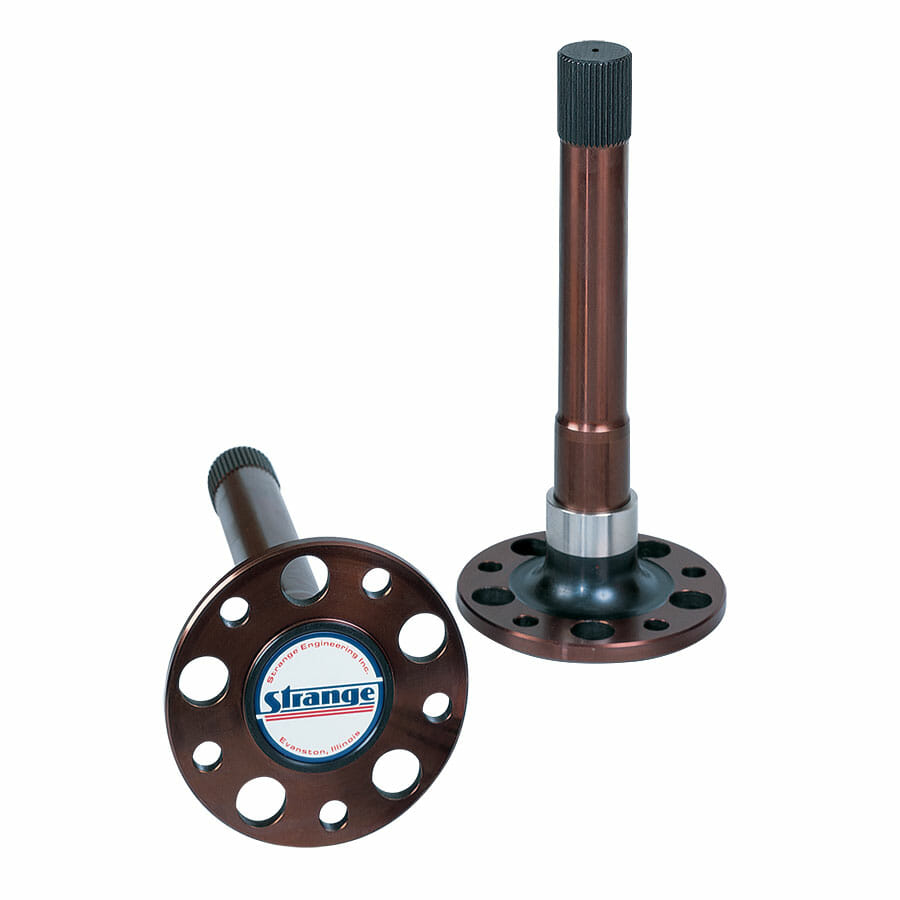

Hy-Tuf 40 Spline Axles
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Five 1″ ID lightening holes in axle flange
– Thru hardened to Rc 45-48 to maximize the material's torsional strength
– Finish machined, including entire shaft, after heat treat to ensure accuracy
– 40 spline with 45┬║ pressure angle
– Black oxide finish to resist corrosion
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Five 1″ lightening holes removes .4 lbs per axle



See Our Axles Packages For Additional Savings

With 3.150″ Axle Bearings & Studs
P1016

With 3.150″ Axle Bearings, Studs, & Spool
P2017

With 3.350″ Axle Bearings, & Studs
P1017

With 3.350″ Axle Bearings, Studs, & Spool
P2018

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

Strange 40 spline solid race axles- pr

Additional information

Weight 0.01 lbs
