Press release two new steering-racks

Door car racks have been introduced into our expanding line of steering components.
Together, they join our popular Dragster rack, fulfilling the need for quality rack & pinion steering systems.
These units are designed for Drag Race use only, and feature the same dedication to workmanship that racers have come to expect.
Proudly designed, machined, and assembled by Strange Engineering in the USA.

Body
• 6061-T6511 billet aluminum
• Black anodized finish
• 20º horizontal pinion angle

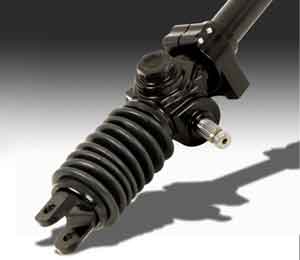

Rack & Pinion Gear
• 4140 premium alloy steel
• Hardened rack & pinion gear
• 22 to 1 ratio
• 9/16”-26 spline pinion
• Utilizes common Mustang / Pinto joints

Bellows
• High temperature silicone Clevis Ends
• 6061-T6500 billet aluminum
• Black anodized finish
• Accepts 3/8” high misalignment rod ends
• Adjustable clevis angles Pinion Side Mounting clamp
• 7/16”-14 bolt holes on 1.250” centers Opposing Mounting Clamp
• 3/8” -16 bolt holes on 1.380” centers

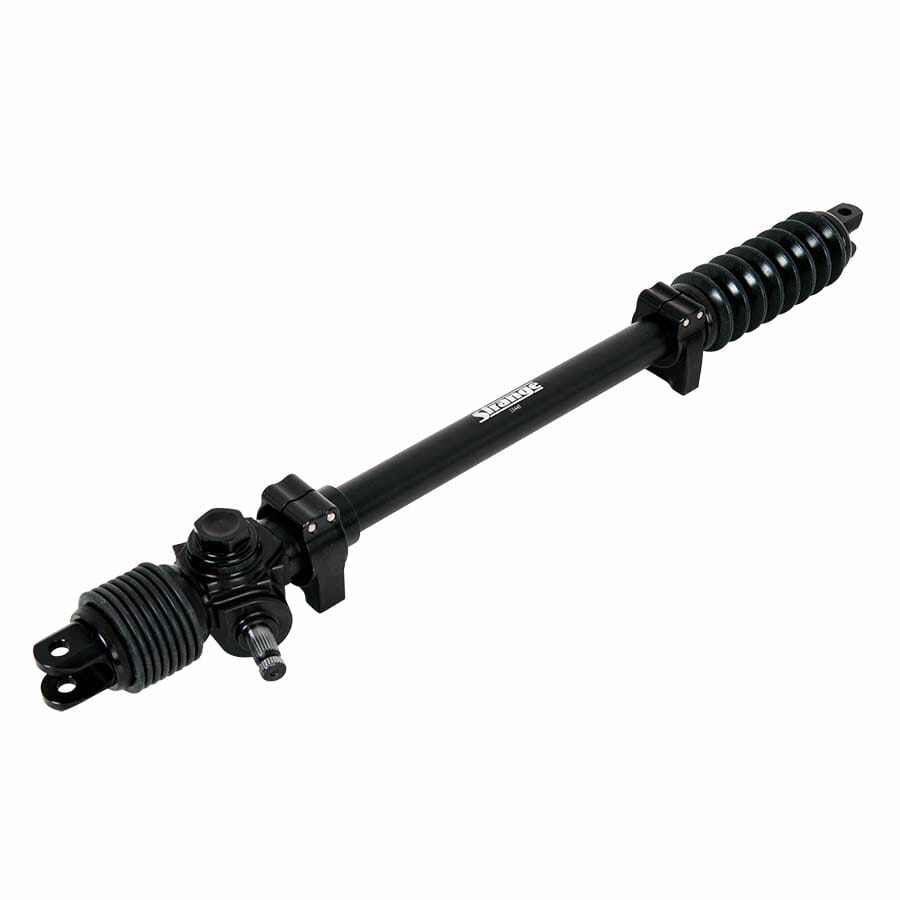

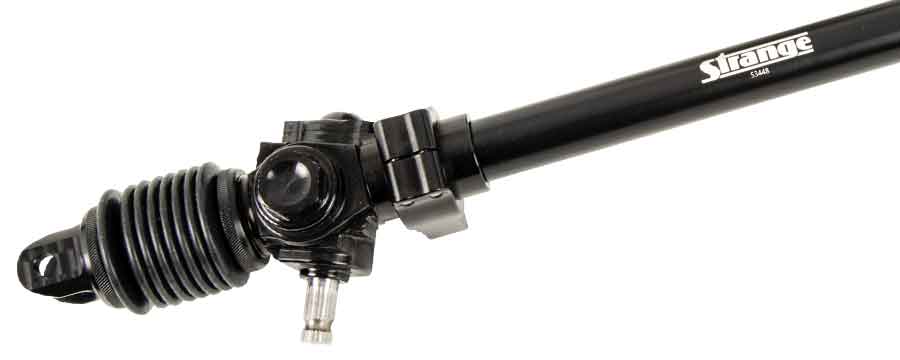

S3448
• 24.5 tie rod centers
• 4.25” total rack travel

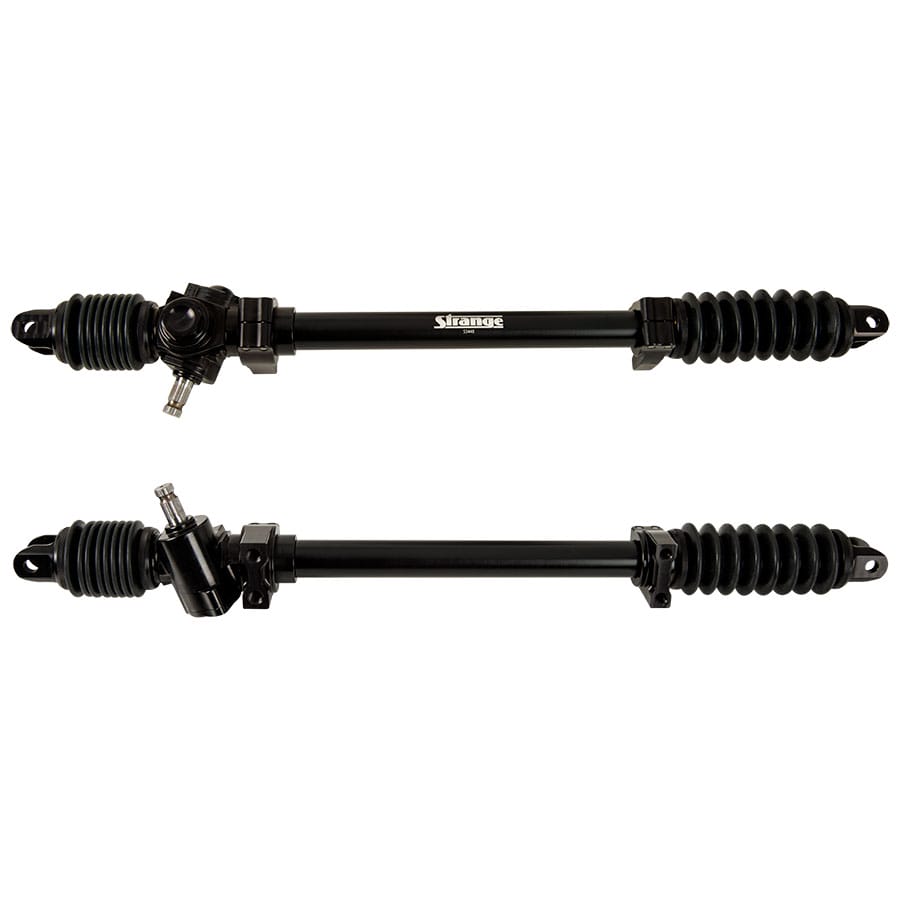

• Vertical pinion angle 0º as shipped
• Adjustable upward to 20º or 40º
• 11.60” mounting clamp centers
• 5.85 lbs

S3448-195
• 19.5 tie rod centers
• 4.75” total rack travel
• 16º downward pinion angle
• 6.10” mounting clamp centers
• 5 lbs

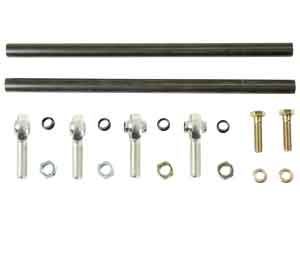

S3449 – Tie Rod Kit
• 4130 seamless chrome moly tubing
• L/H & R/H Teflon® lined chrome moly rod ends
• 7/16” OD x 3/8” ID bushings
• 3/8”-24 x 1.5” grade 8 bolts & ESNA nuts
• Requires 7/16”-20 taps in both LH & RH threads

---
