LPW Axle Tube Brace Kit Fits LPW Ultimate Covers For GM 10 Bolt, 12 Bolt, & '86-'04 Ford Mustang 8.8

$130.00

Part Number: R5209

Application
LPW Ultimate Covers Listed Below
GM 7.5 10 bolt…………….. R5219
GM 8.2 / 8.5 10 bolt……… R5203
GM 12 bolt…………….. R5207 / R5221
Ford Mustang 8.8…………. R5234

Note
For Dana 60 Brace – See D3515

Description
Triangulated support system
Drastically reduces axle tube deflection

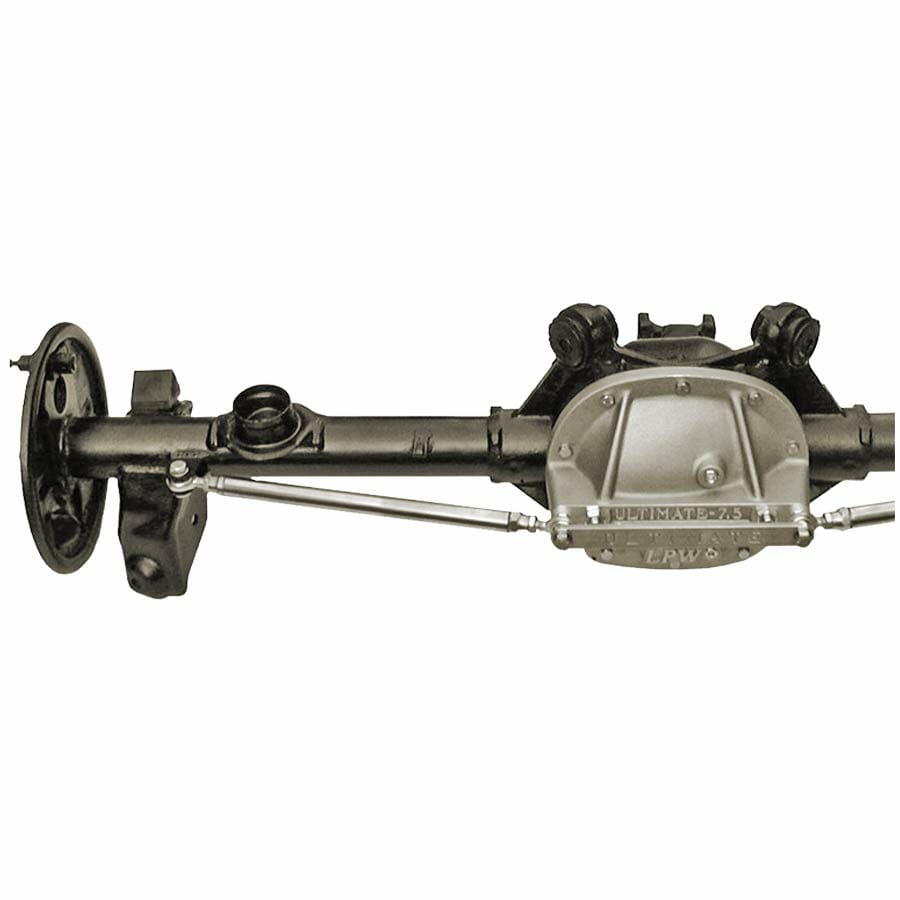

Installation
Tabs weld to axle tubes near housing ends
Support tubes are cut to length
Tube adapters are installed and welded
Rod ends with jam nuts thread into tube adapters
Assembled tubes are adjusted and connect cover to weld tabs

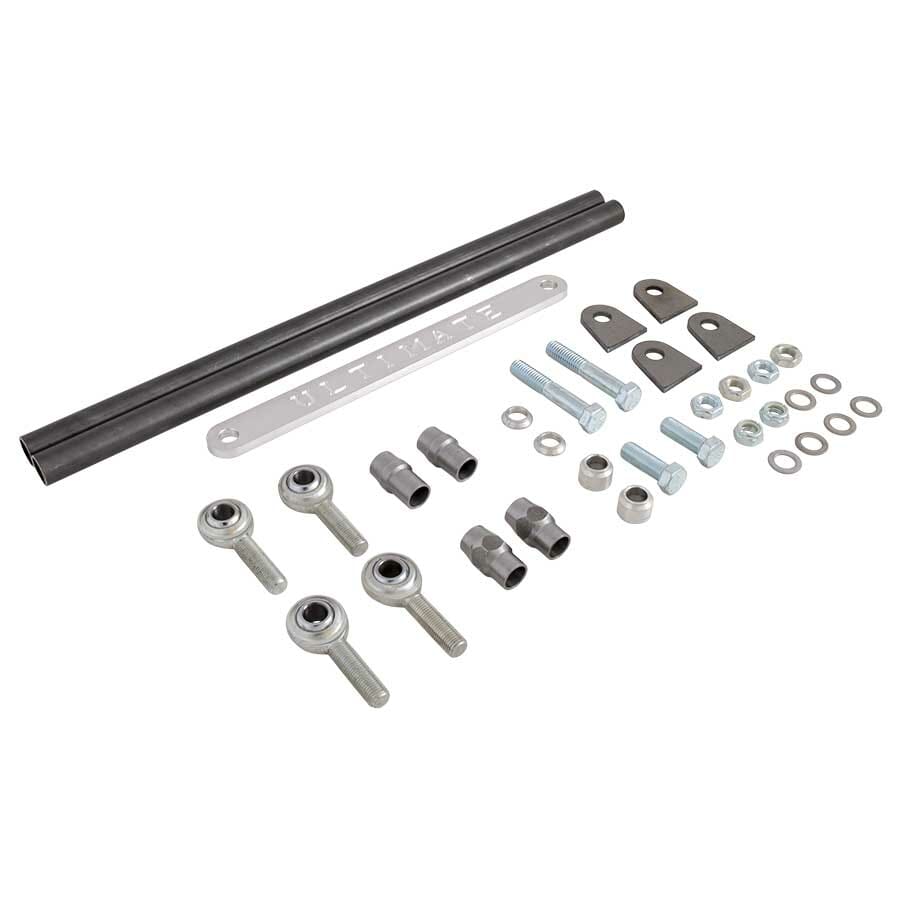

Kit Includes
Cover plate
Rod ends
Jam nuts
Tube adapters
Weld tabs
4130 chrome moly tubing
All necessary mounting hardware

Description

The LPW Axle Tube Brace kit (axle housing brace) This Triangular support system for rear axles fits the LPW Ultimate Covers. This reduces axle tube deflection under load by stopping forward movement of the housing tube ends. With reduction in stress loads, overall durability & vehicle performance is increased.



Applications include:
Ford Mustang 8.8 Rear Ends brace kit (1986 to 2004)
GM 12 Bolt rear end brace kit
GM 10 Bolt rear and brace kit
