Designed Specifically For Use In Drag Racing
Low Profile Four Piston Caliper Kit
Fits where no other calipers can
Resolves Clearance Issues Common With 15″ Bead Lock Wheels
Minimum rise possible over rotor circumference
Four Individual Pads Per Caliper
• Eliminates backing plate distortion
Fits Strange Steel Rear Brake Kits
Also available as brake kit option – OPRB10

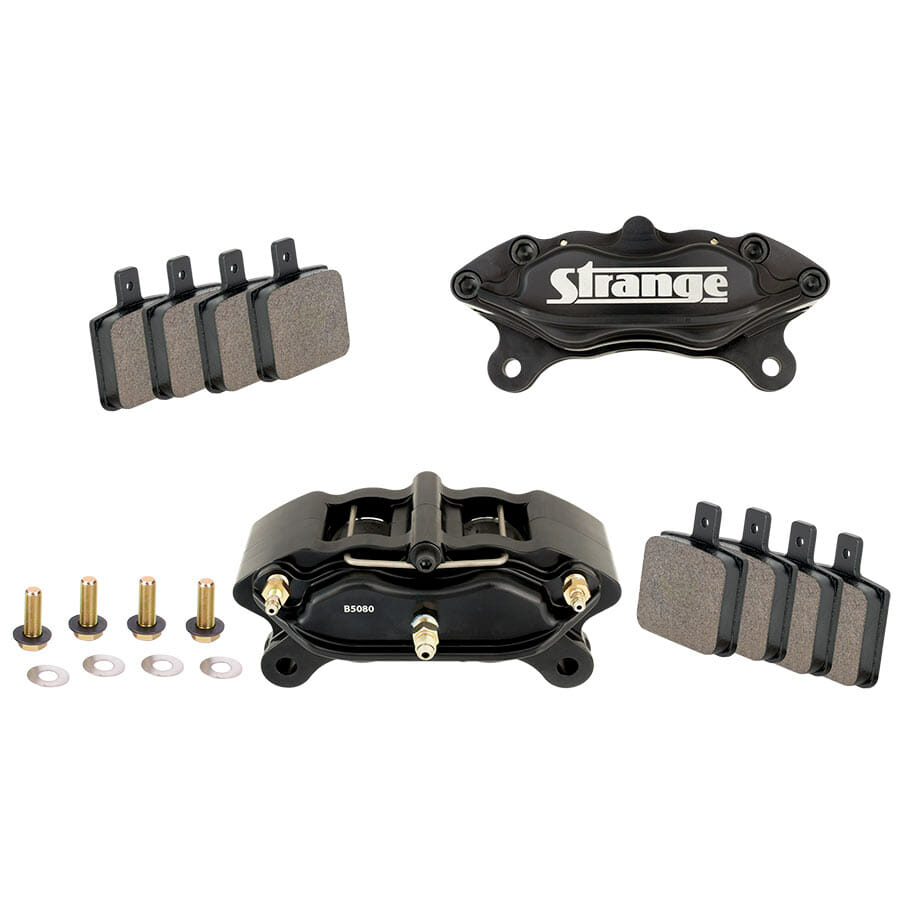

Includes
Low Profile Calipers – B5080
• 6061-T6511 billet aluminum
• CAD designed using FEA analysis
• 3D machining ensures unmatched quality
• Ribbed for increased rigidity
• Black anodized finish
• 1.625″ stainless steel pistons resist corrosion
• Two bleeder screws ensure complete air evacuation
• Mounting bolt holes are on 5.250″ centers
Bolt Kit
• Four 3/8″-24 x 1.125″ grade 8 bolts
• Four 3/8″ ID .125″ thick washers
• Sixteen 3/8″ ID .025″ thick stainless steel alignment shims

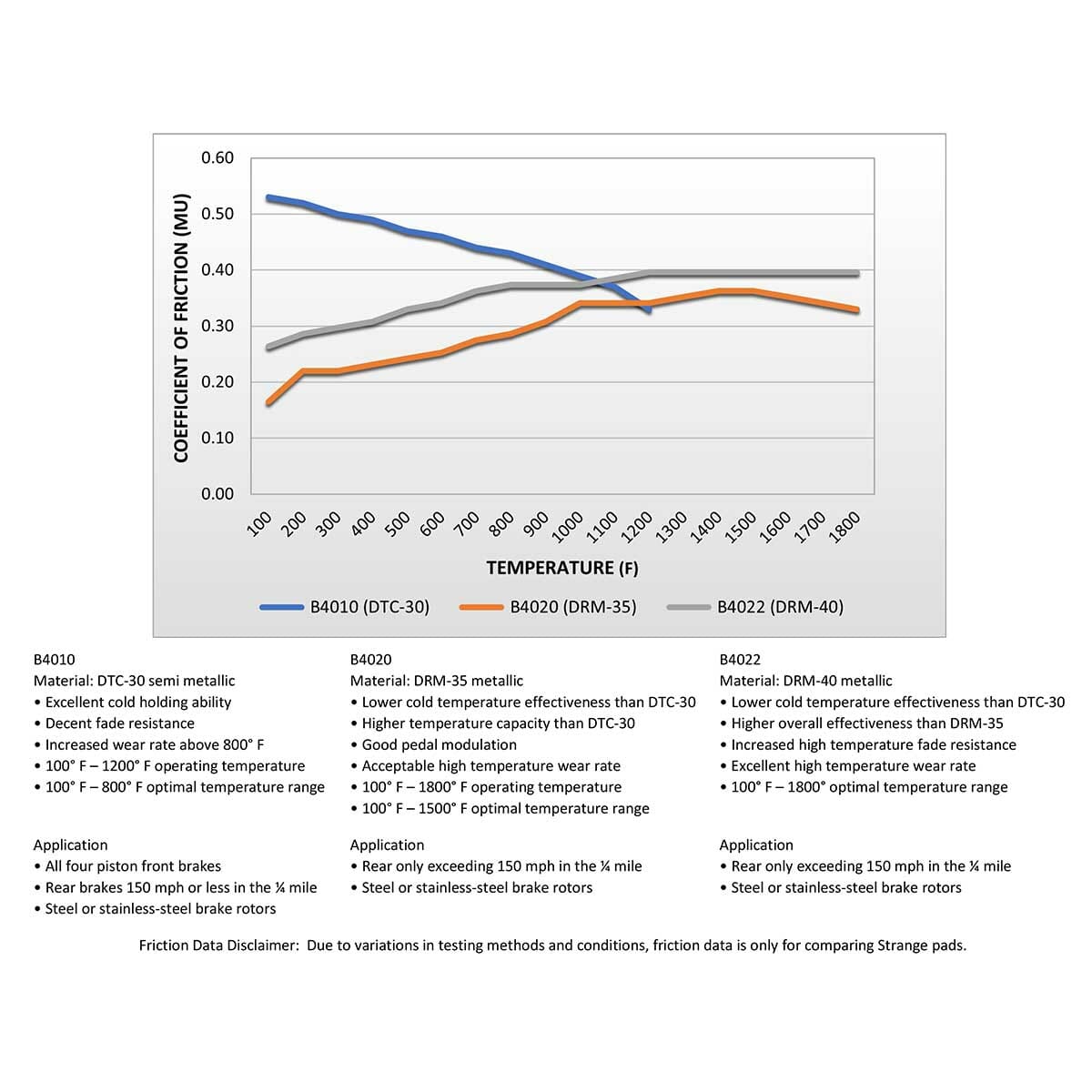

Soft Metallic Brake Pad – B4010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
Caliper Kits With Other Pads
Hard metallic pads – B1855LP
High temp metallic pads – B1853LP
