Designed For Drag Racing Only
Pro Gears may be necessary when tooth breakage occurs with Standard gear sets
Produced from a softer material, the teeth can flex as opposed to crack and break
The life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choice
Machined From 9310 Forged Steel
Heat Treated to Optimize Material Properties

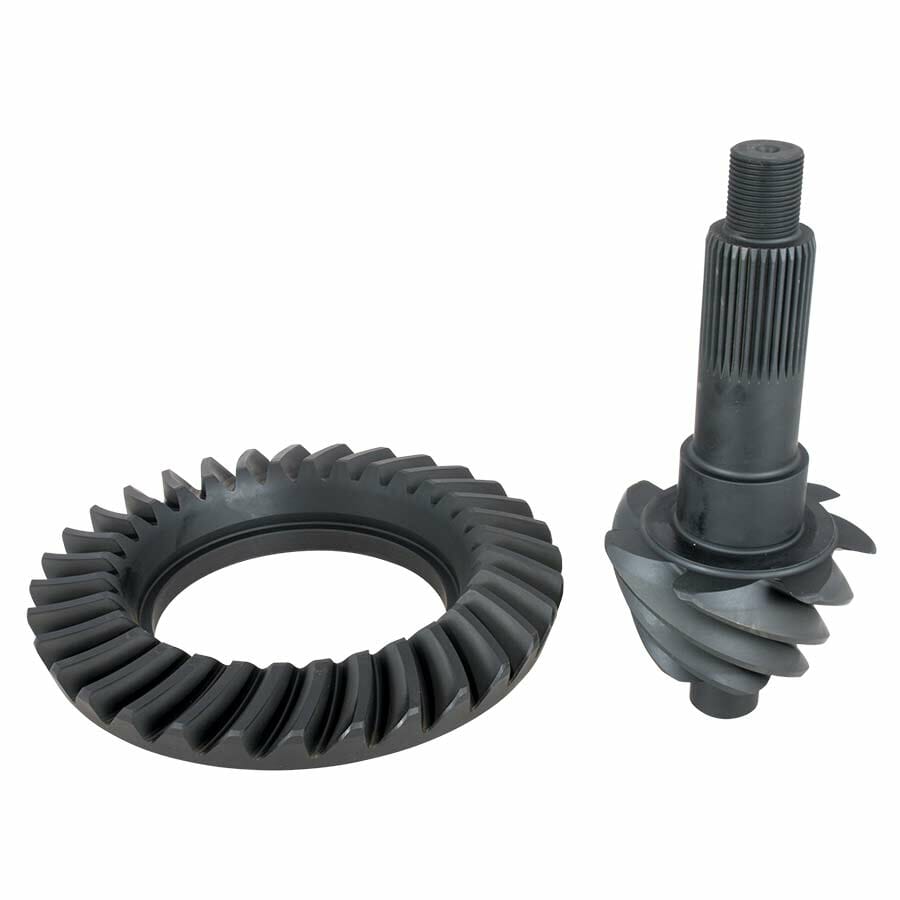

Matched Ring & Pinion Set
Ring Gear
– 9″ OD
– Tooth count 37
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threads
Pinion
– 35 spline shaft
– Tooth count 10
– 1″-14 RH threads
Note
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style Supports
Unsure about your application?
Please contact a Strange Sales Associate to discuss your vehicle
INSTALLATION KITS
Using Tapered Bearing Pinion Support
HD Pro & Drag race…….. R5238 / R5238WR
Ultra & Billet cases…. R5238UC / R5238UCR
Using Ball Bearing Pinion Support
HD Pro & Drag Race…… R5238B / R5238BR
Ultra & Billet cases… R5238UCB / R5238UCBR
