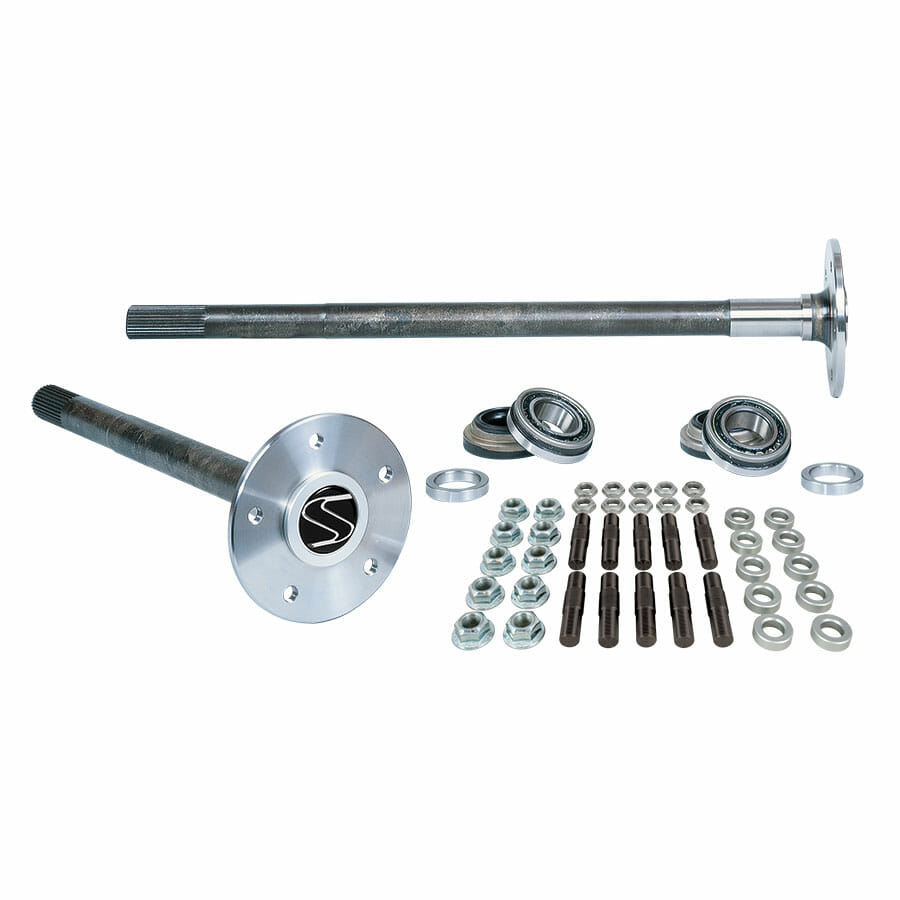

Strange 35 Spline Alloy Axle Package With Axle Bearings & 5/8" Stud Kit

$535.00

Part Number: P350258

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Applications For 35 Spline Alloy Axles
Chevy 12 bolt car
Dana 60 *
Ford 8.8
Ford 9″
Mopar 8 3/4″ *
57-64 Olds / Pontiac

* Stock style 2.875″ I.D. Mopar housing ends require retainer plates – See P350458

Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

This Axle Package Includes:
Alloy Axles – A3500
– Forged from modified 1550 premium steel
– Majority of machining performed before heat treat to provide consistent hardness
– Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
– Finish machined after heat treat to ensure accuracy
– 35 spline with 30° pressure angle
– Lengths up to 34 1/2″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Choice of Axle Bearings (Maybe limited to housing end type)

Timken® Tapered Unit Bearings – A1013
– Designed for use with 3.150″ housing end
– Best for side loading and high mileage
– Includes outer seals and locking collars
Note- May require new retainer plates if originally use a ball style bearing

Sealed Ball Bearings – A1021 / A1023A
– Low friction bearing
– Life reduced during prolonged use
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

Choice of 5/8″-18 Stud Kit

Bolt Style – See A1027
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts

Shank Style – See A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts

Options
Install axle bearings………………… See A1008
Access hole or extra bolt circle… See A1004

Other 35 Spline Alloy Axle Packages
With retainer plates………… See P350458
With spool………………. See P350258S / P350458S

Street / Track 35 Spline Axle Packages With C-Clip Eliminator Kit
OEM Chevy passenger car ends……………….. See P3509G1258
OEM Ford 8.8 ends……………………. See P3509F8658 / P3509F9458 / P3509F0558

Pro Race Axle Packages
With bearings & studs……. See P100758
Including retainer plates… See P100858

Description

35 spline Alloy axles, axle bearings, & 5/8″ stud kit
